RTL8723DS焊接上去了,现在把驱动程序移植上去。

咱先获取源码:https://github.com/lwfinger/rtl8723ds

下载完成后,把驱动文件复制到 tina-d1-open\lichee\linux-5.4\drivers\net\wireless\rtl8723ds 里,没有rtl8723ds文件夹记得新建一个。

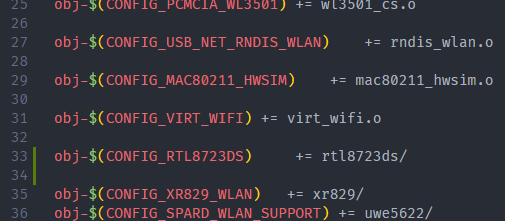

修改tina-d1-open\lichee\linux-5.4\drivers\net\wireless\Makefile,加一行 obj-$(CONFIG_RTL8723DS) += rtl8723ds/

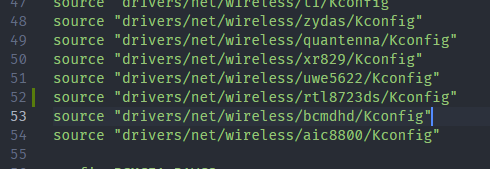

修改tina-d1-open\lichee\linux-5.4\drivers\net\wireless\Kconfig,加一行 source "drivers/net/wireless/rtl8723ds/Kconfig"

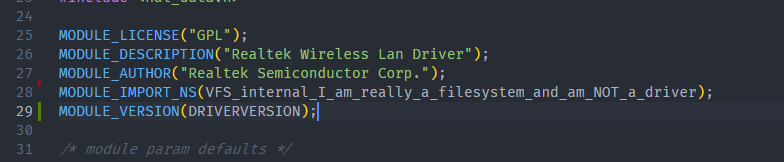

修改tina-d1-open\lichee\linux-5.4\drivers\net\wireless\rtl8723ds\os_dep\linux\os_intfs.c 加一行MODULE_IMPORT_NS(VFS_internal_I_am_really_a_filesystem_and_am_NOT_a_driver);

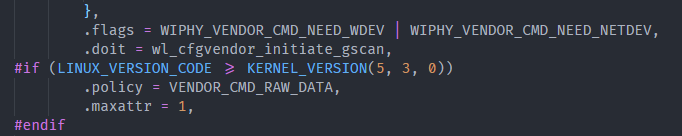

修改tina-d1-open\lichee\linux-5.4\drivers\net\wireless\rtl8723ds\os_dep\linux\rtw_cfgvendor.c 在每一行.policy = VENDOR_CMD_RAW_DATA, 下面加上 .maxattr = 1,


修改tina-d1-open\target\allwinner\d1-lichee_rv_dock\modules.mk,增加以下内容:

define KernelPackage/net-rtl8723ds
  SUBMENU:=$(WIRELESS_MENU)
  TITLE:=RTL8723DS support (staging)
  DEPENDS:= +r8723ds-firmware [email protected] [email protected]_REALTEK
  FILES:=$(LINUX_DIR)/drivers/net/wireless/rtl8723ds/8723ds.ko
  AUTOLOAD:=$(call AutoProbe,8723ds)
endef

define KernelPackage/net-rtl8723ds/description
  Kernel modules for RealTek RTL8723DS support
endef

$(eval $(call KernelPackage,net-rtl8723ds))

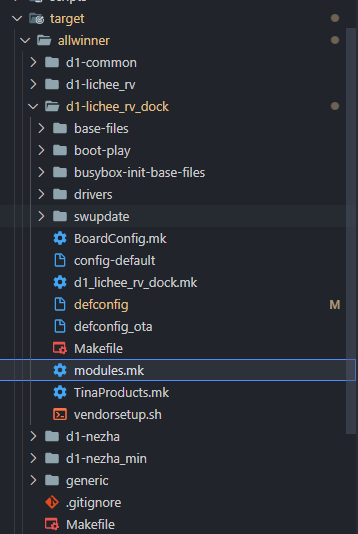

(其中的d1-lichee_rv_dock 是我的板级配置,请选择自己的板级配置比如d1-nezha,如下图)


进入内核配置,勾选Realtek 8723D SDIO or SPI WiFi为Module(<M>不是<*>

make kernel_menuconfig

Device Drivers ->
     Network device support ->
           Wireless LAN ->
                  <M>   Realtek 8723D SDIO or SPI WiFi

进入Tina配置,勾选相关驱动

make menuconfig

Firmware  ->
     <*> r8723ds-firmware.............................. RealTek RTL8723DS firmware

Kernel modules ->
     Wireless Drivers  ->
        <*> kmod-net-rtl8723ds........................... RTL8723DS support (staging)

保存,编译,打包

make -j65535
pack

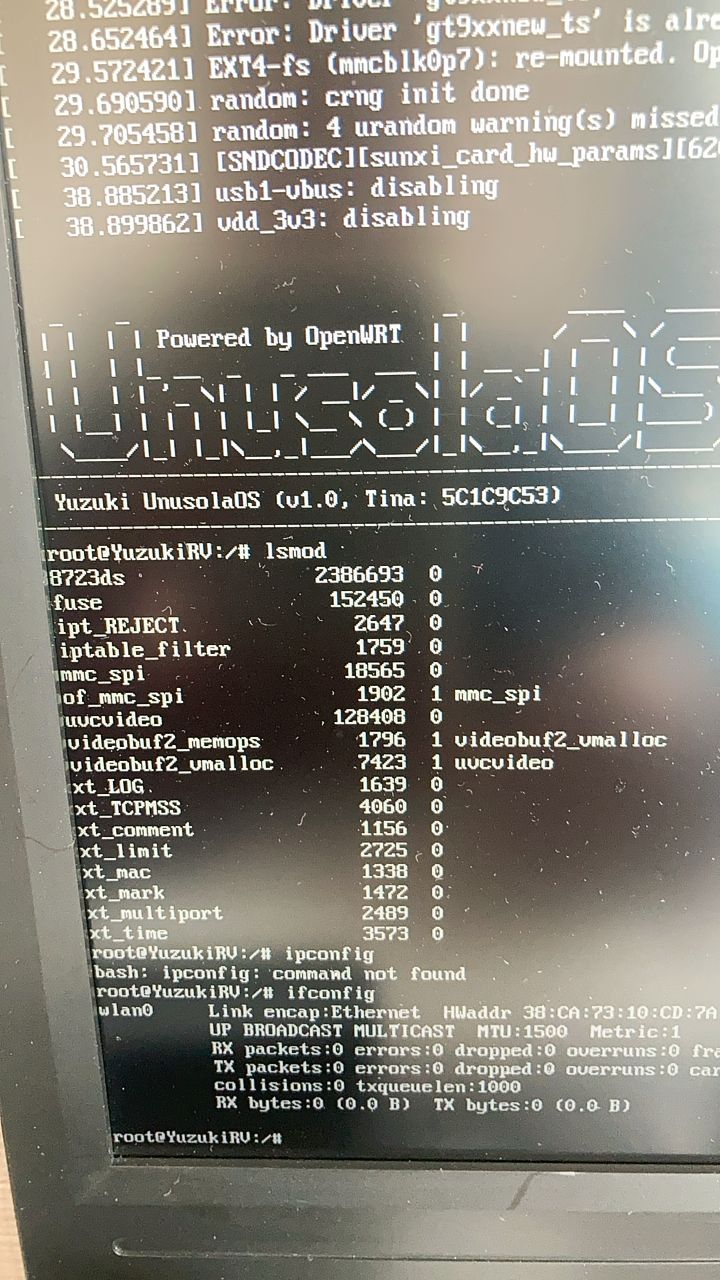

烧录后就能看到了
